Reducing Carbon, Adding Value
The Hiper range enables piled foundations and retaining walls to deliver the required structural performance with less material and lower embodied carbon.
Built around hollow, pre-stressed, precast pile technology, the range is designed to reduce concrete and reinforcement. Depending on the application, the hollow core accommodates ground-source heating and cooling, thermal energy storage, or protected post-tensioning systems for tension piles and retaining walls.
1. Less material. Lower embodied carbon.
Material-efficient foundation and retaining-wall designs reduce concrete and reinforcement by 20-30%, lowering the embodied carbon.
2. Greater energy flexibility. Lower operating costs.
Where thermally enabled, Hiper piles combine ground-source energy exchange with thermal storage, manage heating and cooling demand while reducing operational energy use, cost and carbon by up to 40%.
3. Separate installation. Reduced delivery risk.
For thermal applications, pipework installation is separated from piling and groundworks, reducing installation interfaces and supporting a more reliable groundside energy system.

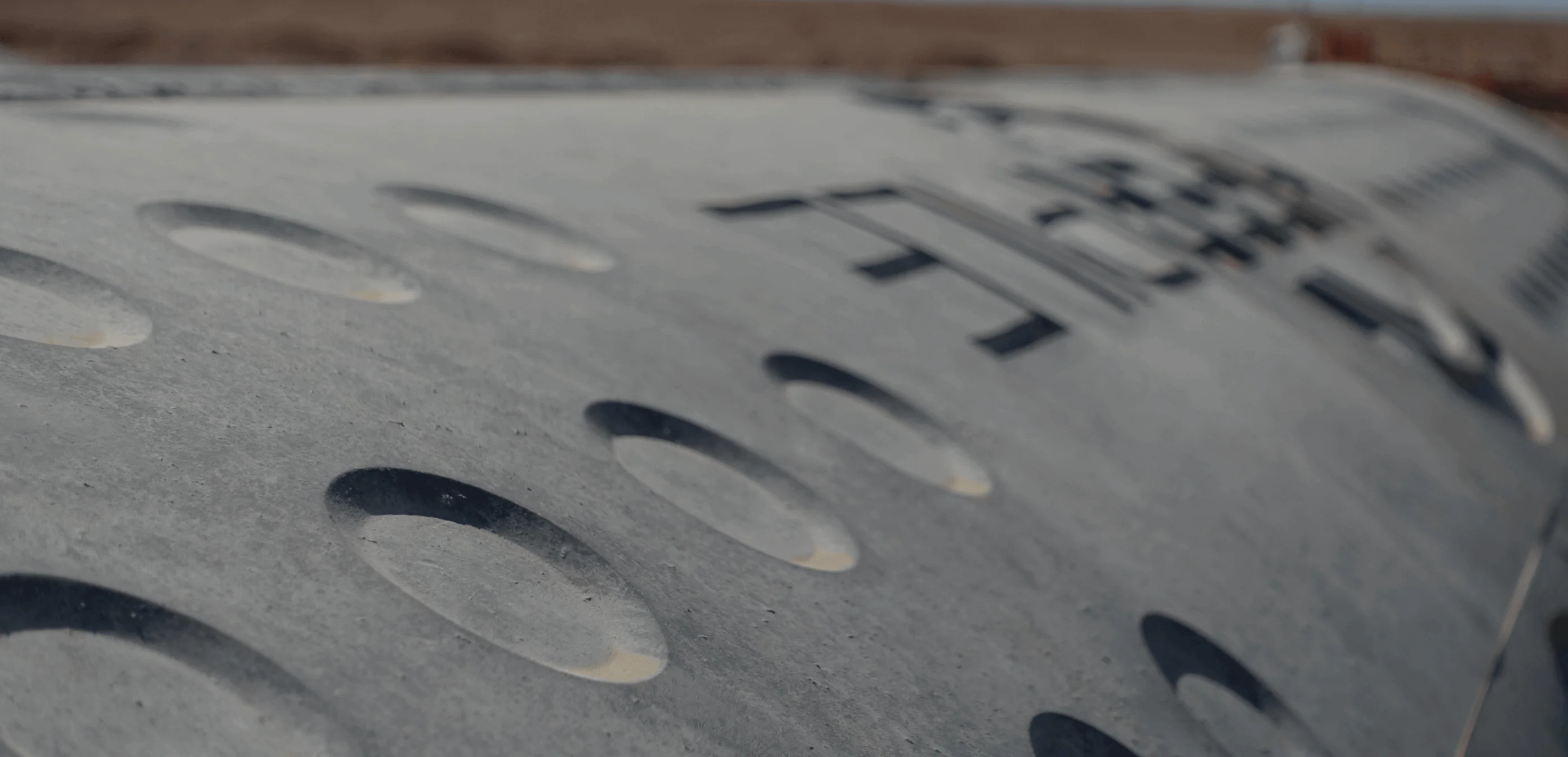

Hiperpile
Delivering the required structural capacity with less material and embodied carbon, the Hiperpile also has enhanced thermal conductivity and significantly greater thermal capacity than traditional energy piles.
Application | Large Dia Bearing Piles |
Key Benefits | Reduces Material, Carbon, & Enables Thermal Use |
Savings | Reduces Embodied Carbon by ~35% |
Max Dia / Depth | 2400mm / 70m |
Min Dia / Depth | 750mm / 10m |
Hiperstore
A below-ground thermal energy storage system that enables flexible and resilient modes of operation. By storing and distributing energy during surplus or low-demand periods we reduce overall system size, cost and operational carbon.
Application | Large Diameter Bearing Piles |
Key Benefits | Peak Capacity from 15kW to 60kW+ per pile |
Savings | Whole Life Carbon, Electricity &/or Water |
Max Dia / Depth | 1800mm / 70m |
Min Dia / Depth | 750mm / 10m |

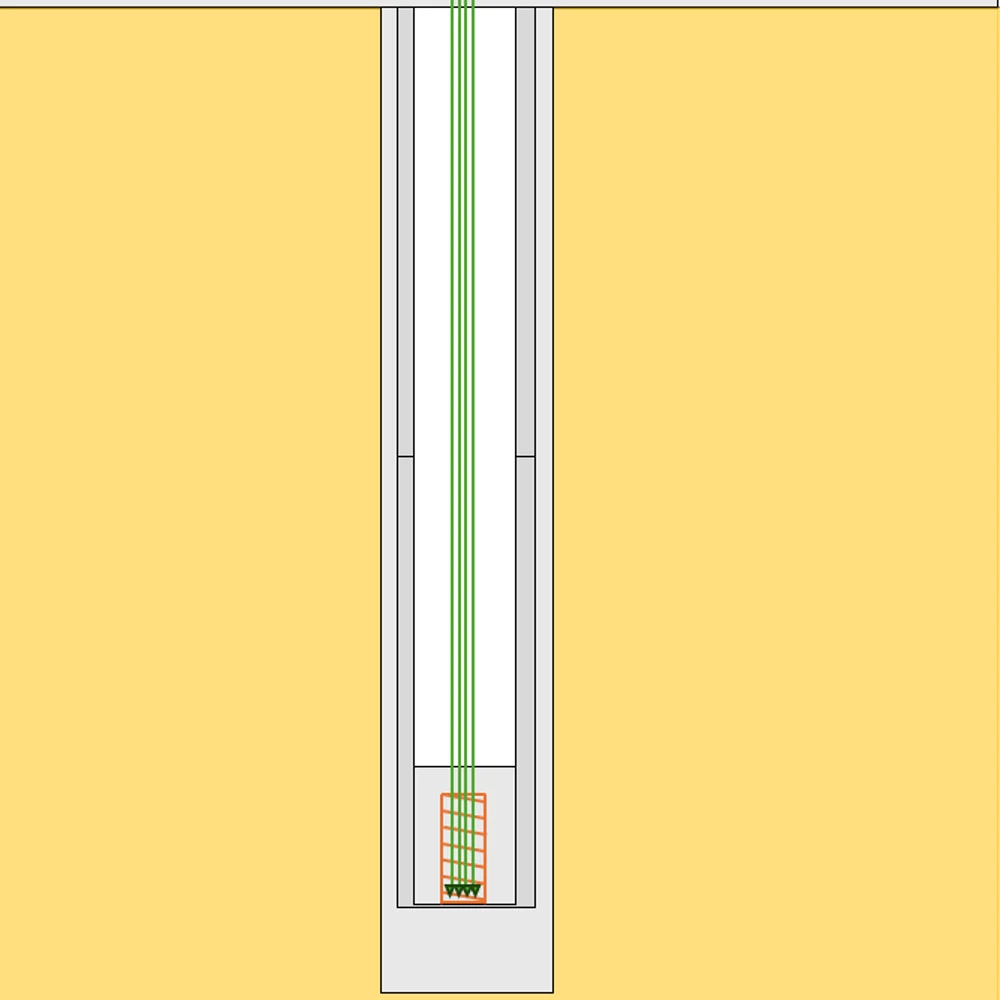

Hipertension
A system for piles subject to tension or heave loading, redefining the performance and ultimate working capacity of traditional tension piles, reducing cost and carbon.
Application | Tension Piles & Heave Piles |
Key Benefits | Reduces Reinforcement Qty |
Savings | Reduced Embodied Carbon by ~20% |
Max Dia / Depth | 1500mm/ 70m |
Min Dia / Depth | 750mm/ 10m |

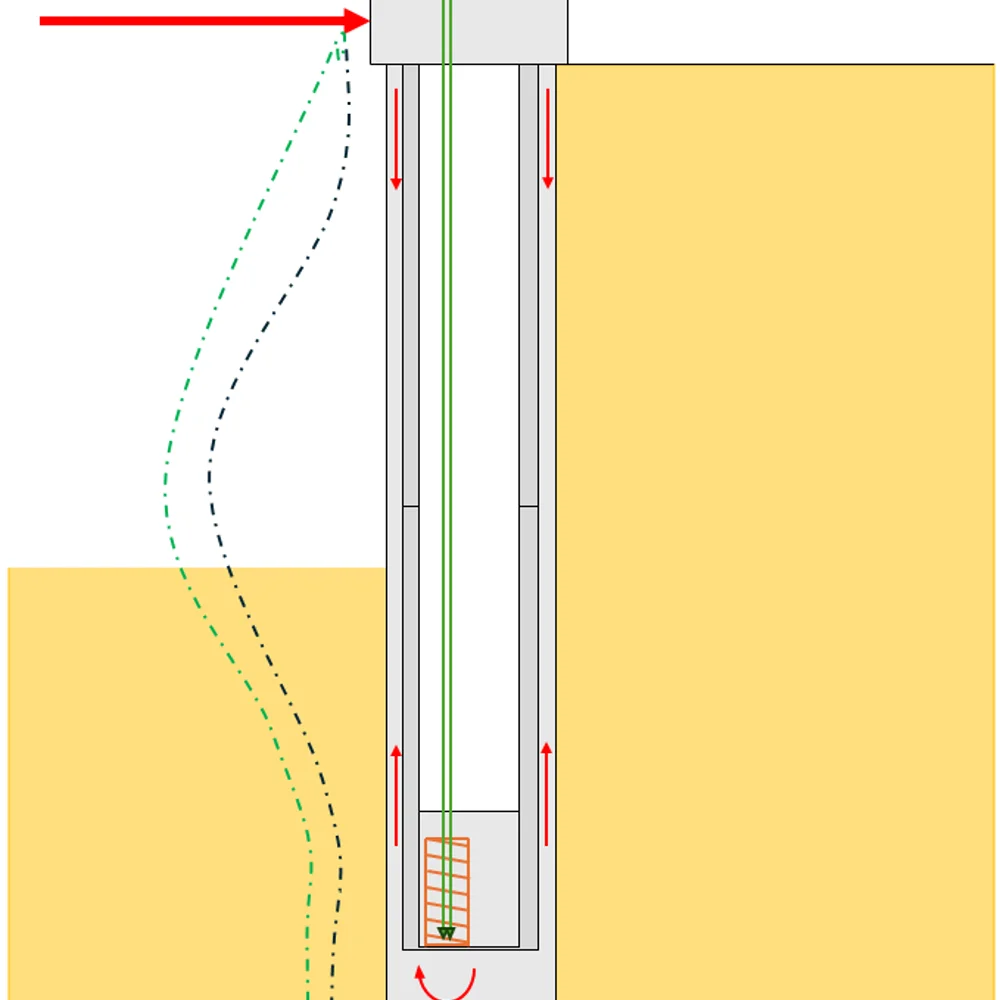

Hiperactive
Through intelligent design, Hiperactive delivers material-efficient retaining walls, using an accurately positioned post-tensioned solution to reduce concrete and reinforcement.
Application | Piled Retaining Walls |
Key Benefits | Reduces Wall Deflection & Reinforcement |
Savings | Reduced Embodied Carbon by ~25% |
Max Dia / Depth | 1500mm / 40m |
Min Dia / Depth | 900mm / 10m |
Hiperextension
Repurposes or physically extends existing Hiper systems to increase structural and geotechnical capacity, enhance asset value, and extend product working life and warranty.
H
I
P
E
R

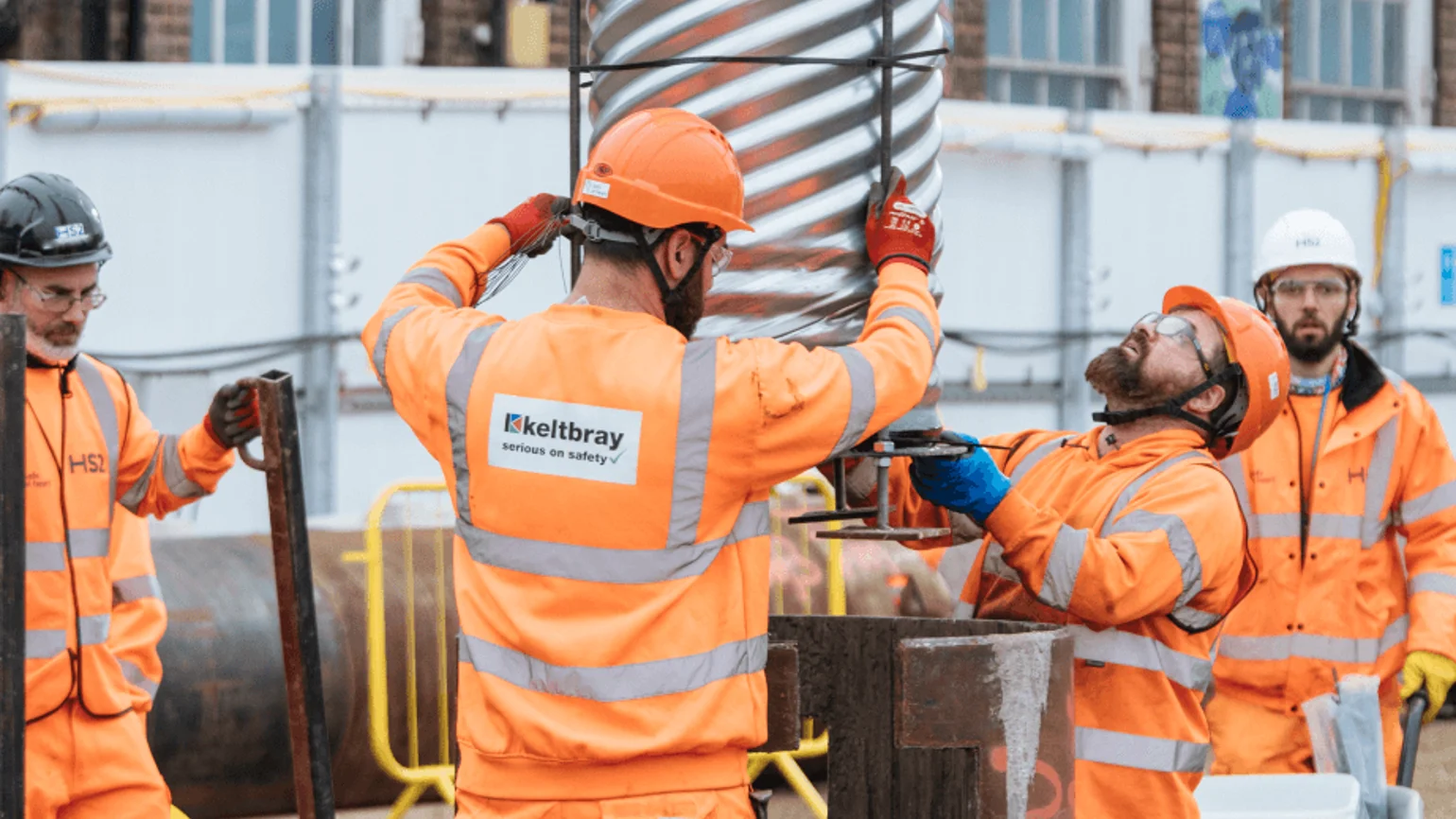

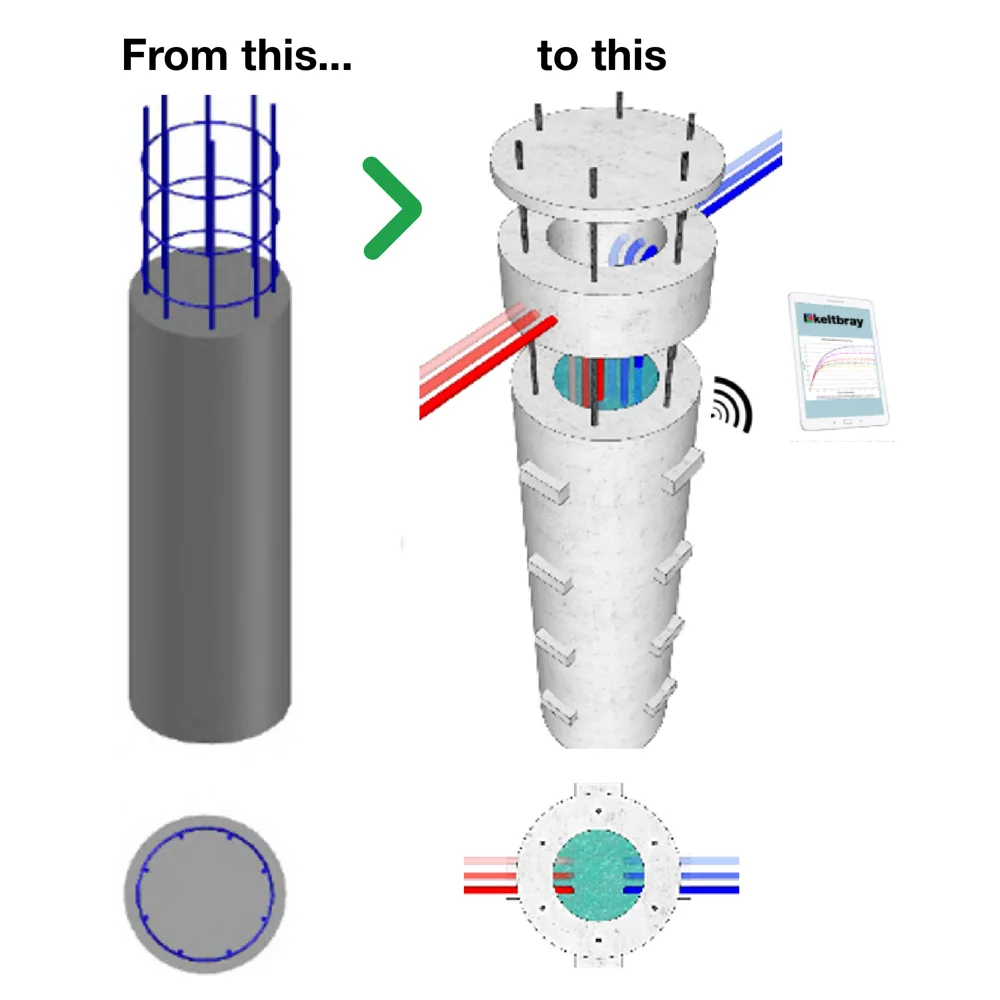

Introducing a void provides significant material and carbon savings, achieved by optimising and enhancing the structural efficiency of the remaining concrete section
Available for bored pile diameters from 750mm to 2.4m
H
I
P
E
R

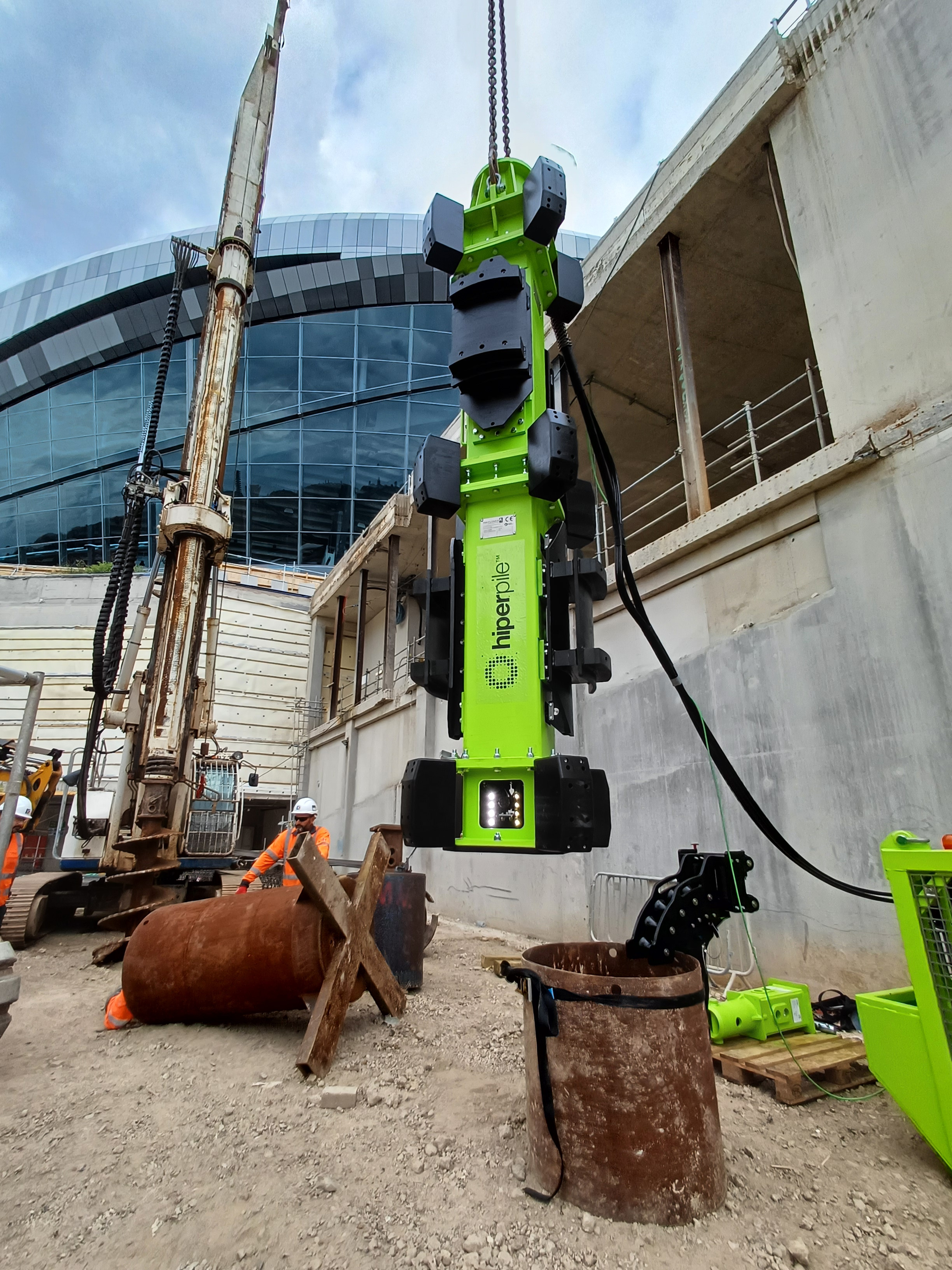

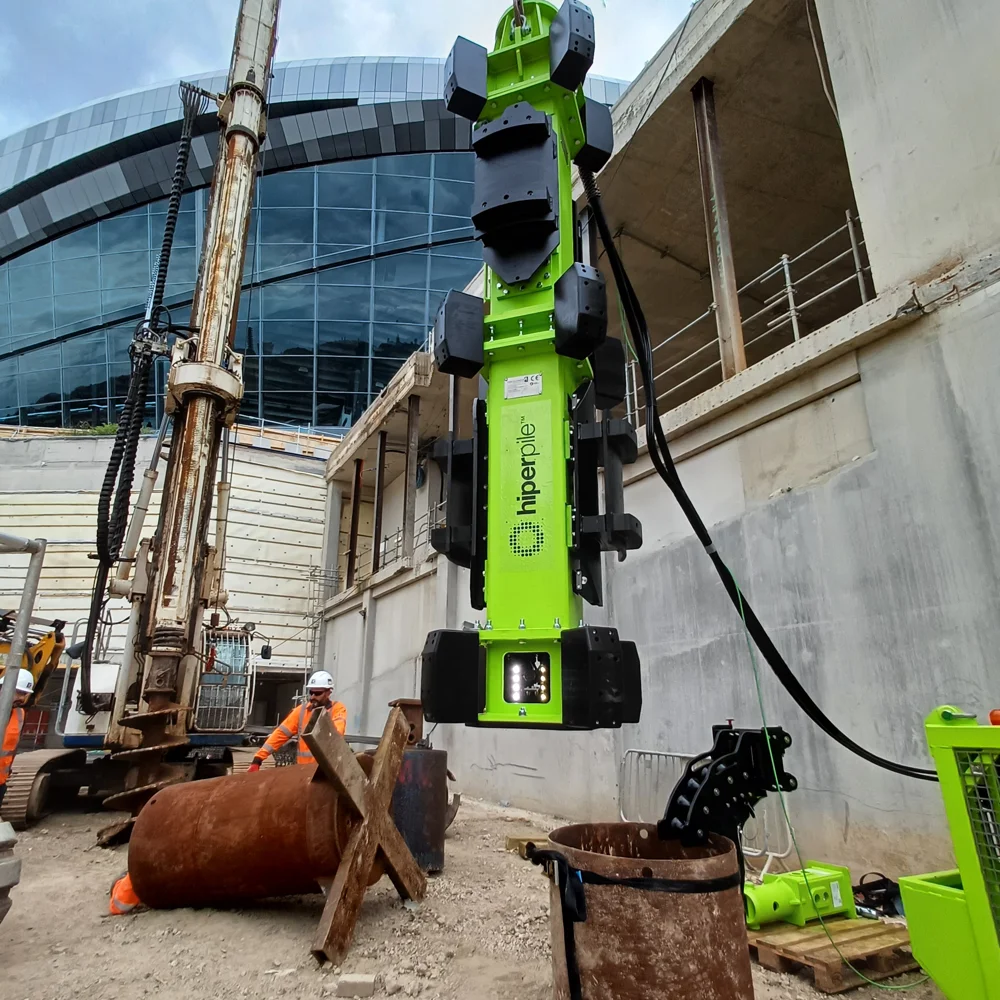

Our bespoke patented equipment significantly enhances the piled shaft friction allowing for continual optimisation of the pile design; providing savings on materials, carbon and pile arisings
Available for bored pile diameters from 600mm to 1200mm
H
I
P
E
R

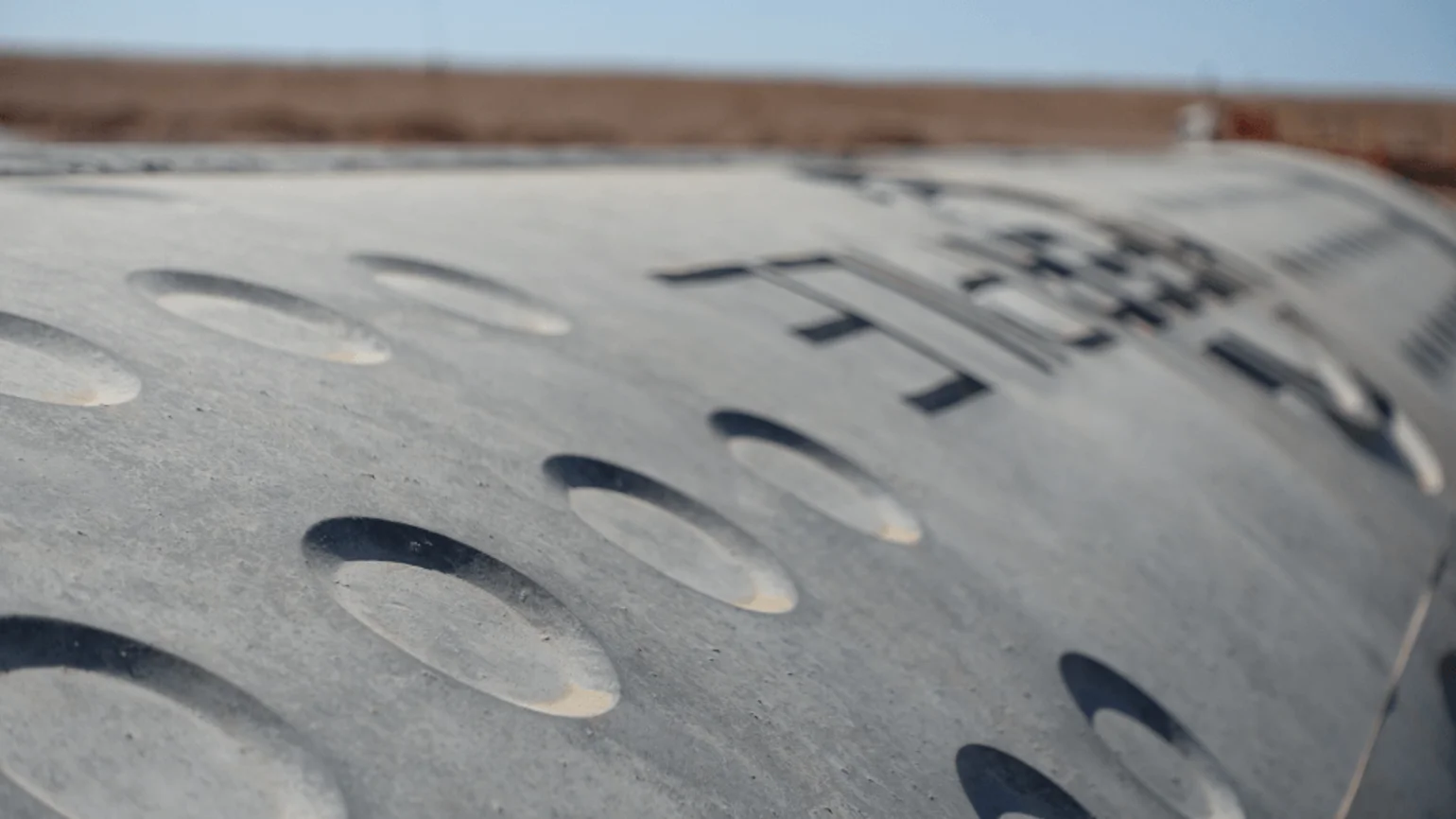

Hollow pile elements manufactured in controlled factory conditions that allows the benefits of Hiperpile to be achieved on very deep, large diameter, heavily loaded piles
Available for bored pile diameters of up to 2400mm
H
I
P
E
R

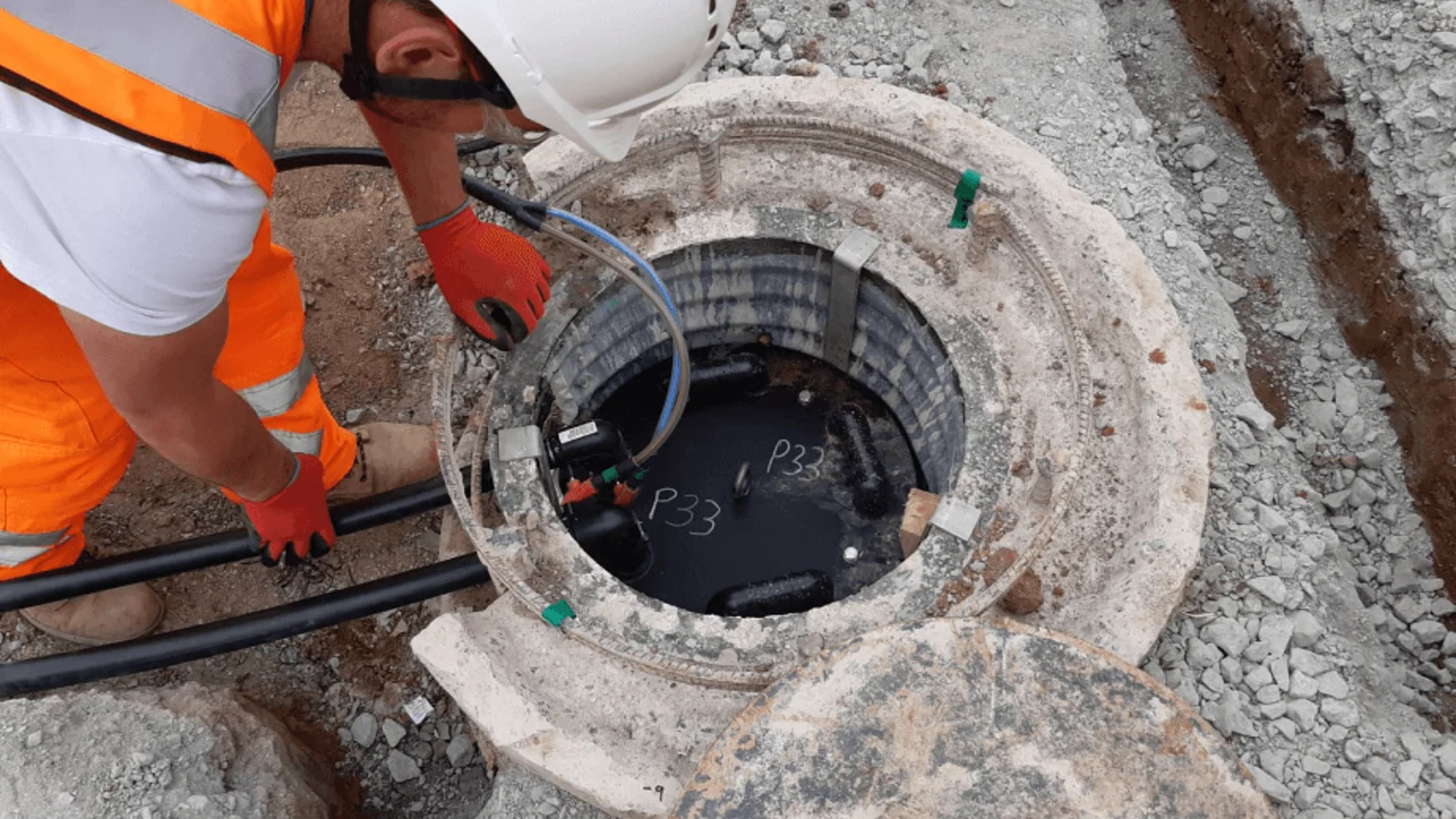

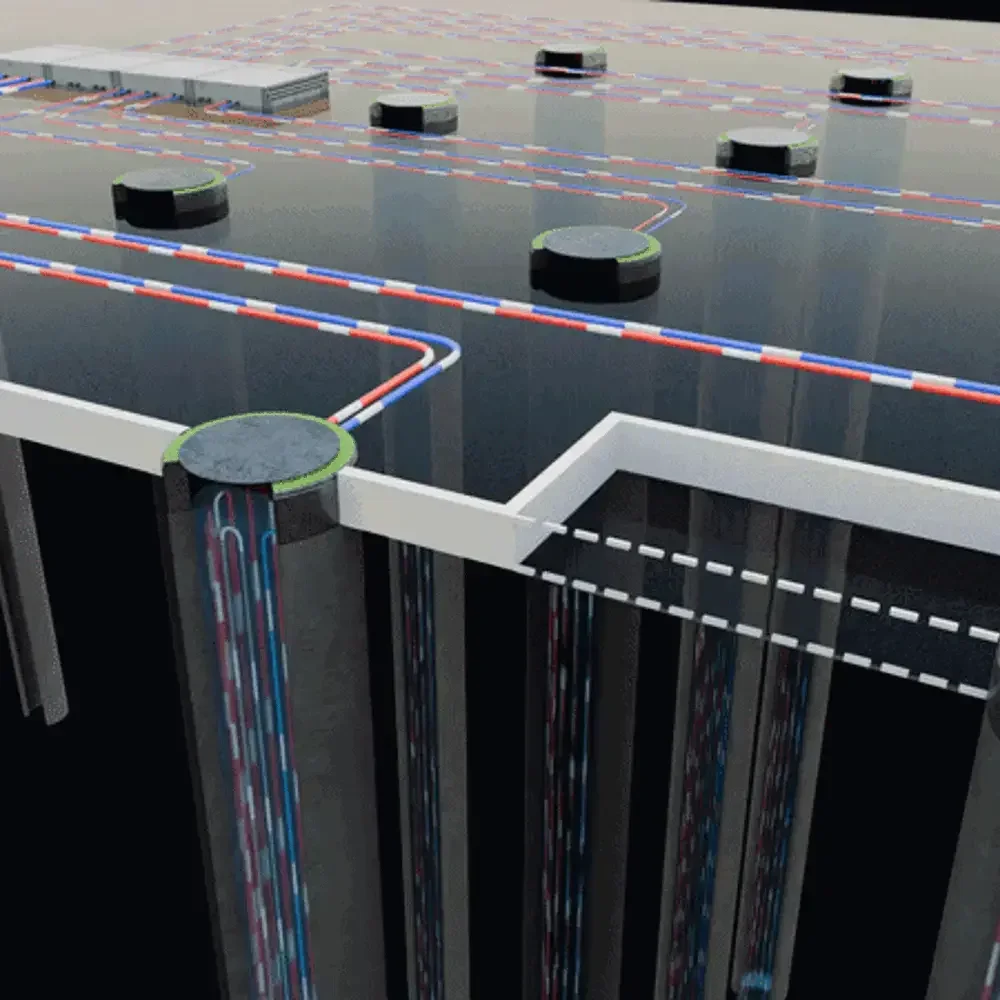

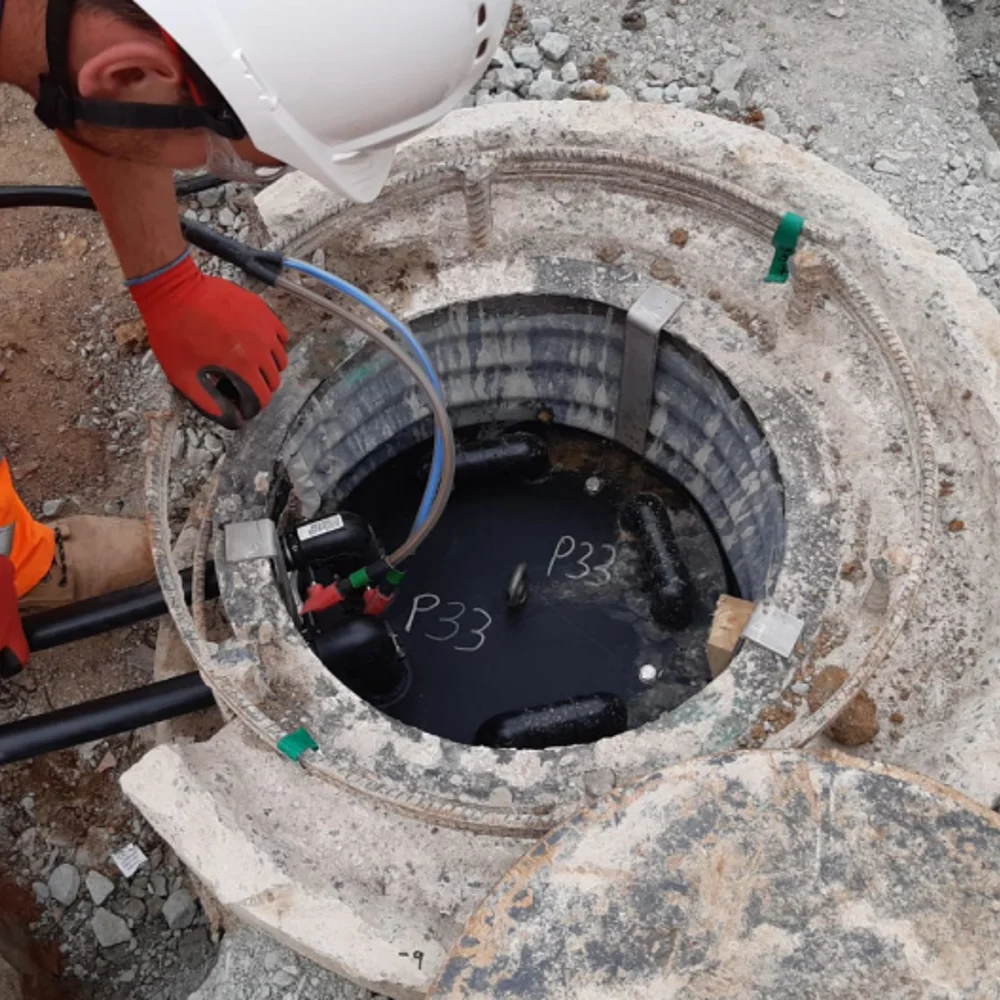

Thermal fluid and standard heat pipe loops are installed within the void following piling. The thermal energy generated delivers efficient building heating & cooling systems for both peak and base load demands.
Available for all bored hollow pile systems
H
I
P
E
R

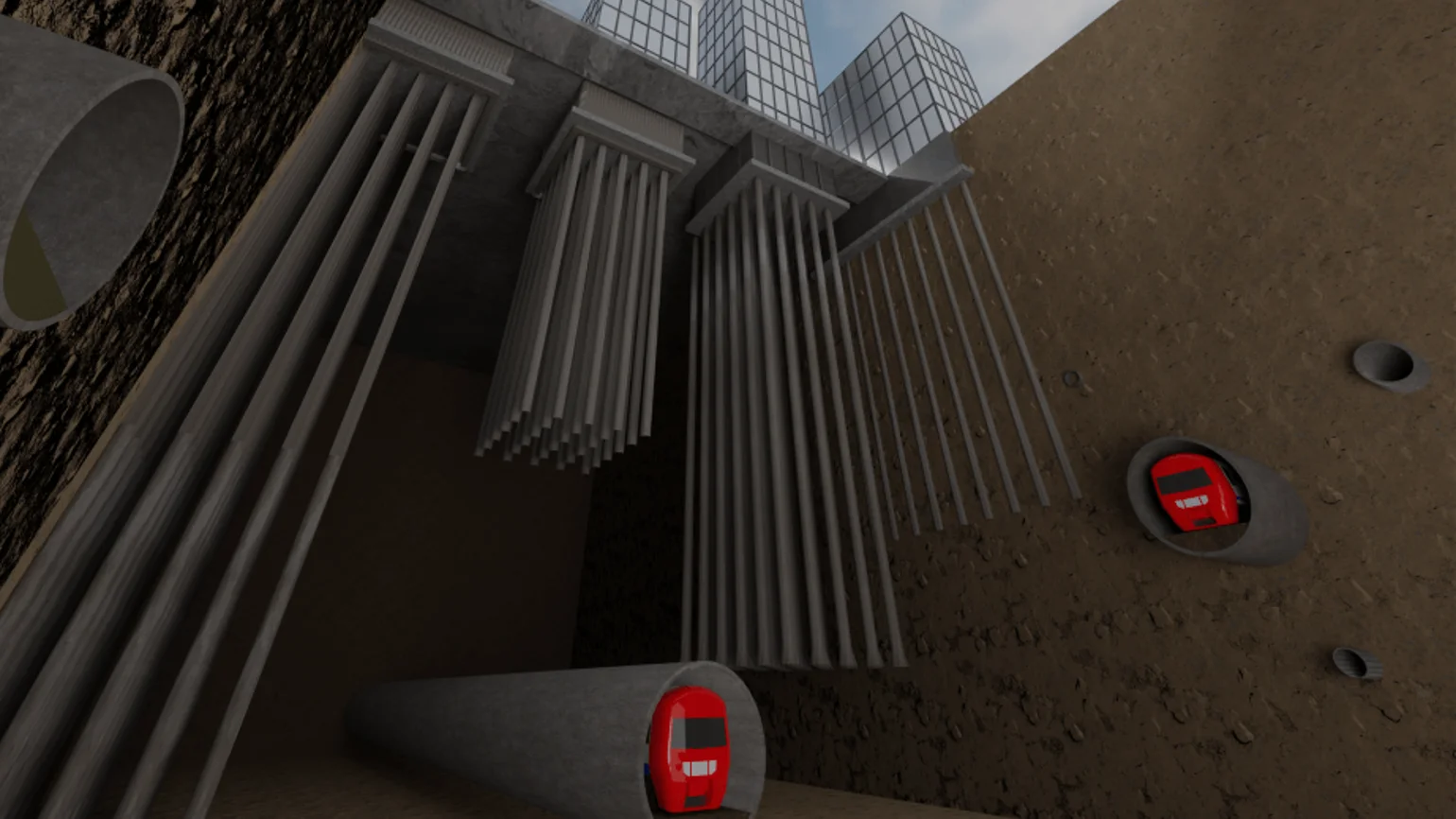

The pile void provides a shaft through which visual inspections can be made to confirm structural and material integrity, to allow insurers to re-warrant the reuse of existing our Hiperpile foundations.
Bespoke tooling is utilised to core through the pile base to enhance the future load bearing capacity.

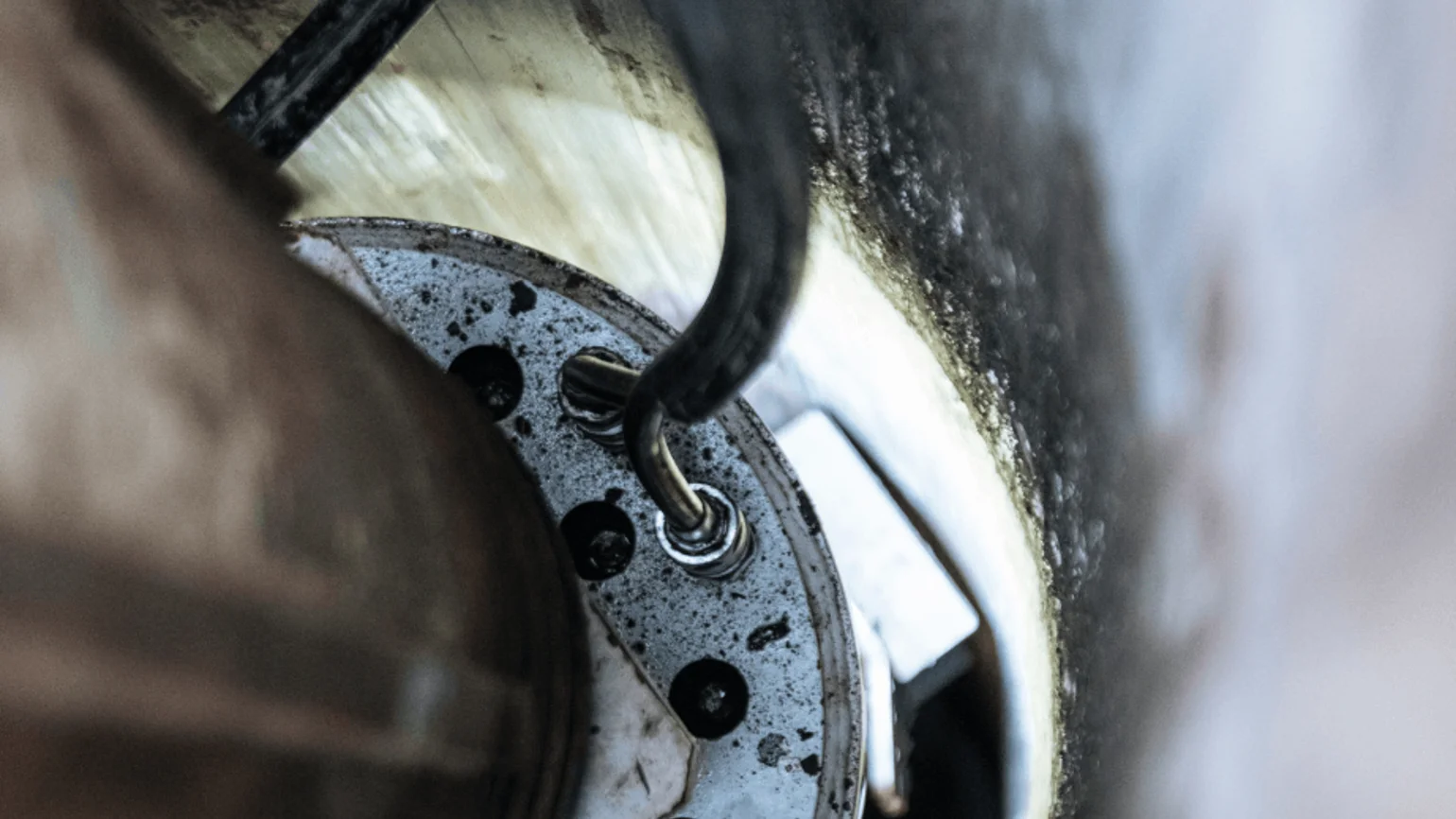

Impression Pile
The Impression pile has now been utilised across a number of live projects delivering cost and carbon savings for our clients.
Within the appropriate ground conditions, the Impression pile delivers a 25% uplift in working load capacity per pile.

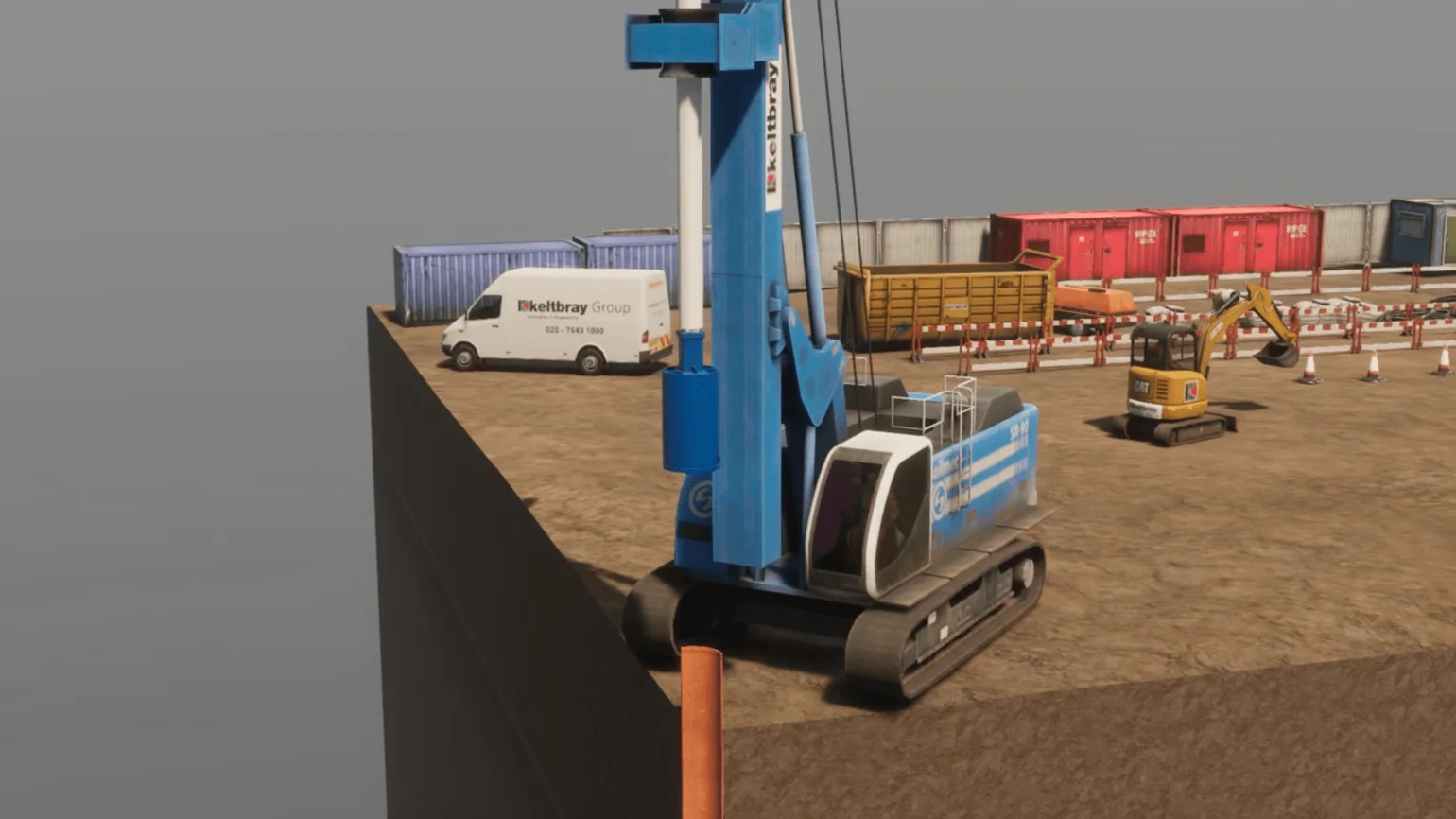

The impression tool may be adopted with a traditional solid bored pile or with a Hiper pile and is applicable for 600mm-1200mm diameter piles.
