Our Products
The Hiper product range is award-winning, patented and multi-functional. Its primary purpose is to provide traditional foundation support while significantly reducing material volumes (concrete and steel) and associated embodied carbon. The unique hollow core enables efficient geo-energy exchange and thermal energy storage, and improves performance under tension and/or lateral loading.
1) Lower carbon footprint – Our piled foundation solutions typically cut embodied carbon in deep foundations by 20–30%.
2) Operational flexibility and efficiency – We enable energy storage in the ground, helping balance heating and cooling cycles while reducing operational carbon and costs.
3) Innovative thermal pile system – Our next-generation thermal energy pile avoids common issues by separating pipe installation from piling and groundworks, ensuring a reliable, fully functional thermal foundation system.
These innovations are summarised as follows:
(H) Hollow – Reduces material use and embodied carbon
(I) Impression Enhanced – Improves design performance while reducing material use
(P) Precast – Adopts DfMA (Design for Manufacture and Assembly) to optimise material use
(E) Energy generation – Uses the hollow void for energy generation and storage
(R) Reusable – Enables circular and extendable foundations
Hiperpile

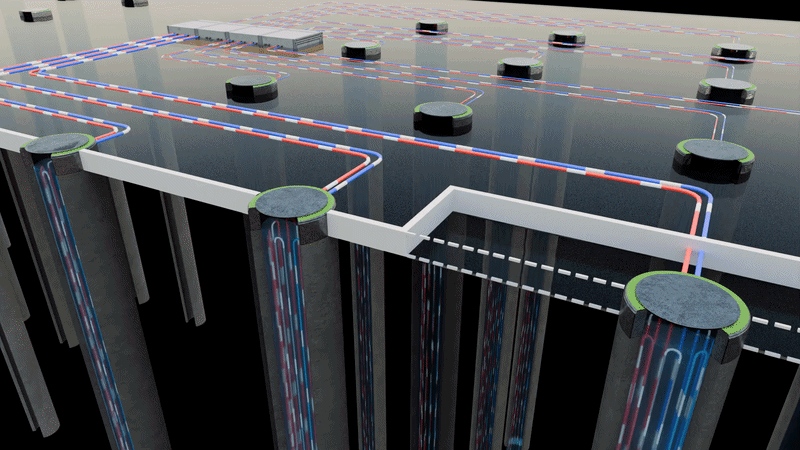

An enhanced-conductivity thermal energy pile, enabling geothermal energy exchange and/or thermal energy storage. It can be combined with other product variants, as detailed below.
| Application | Large Dia Bearing Piles |
| Key Benefits | Reduces Material Use |
| Savings | Embodied Carbon to ~35% |
| Max Dia / Depth | 1800mm/ 70m |
| Min Dia / Depth | 900mm/ 10m |
Hiperstore
A below-ground thermal energy or water storage system that uses and redistributes green energy during surplus or low-demand periods, reducing operational cost and carbon.
| Application | Thermal Energy Storage & Generation |
| Key Benefits | V High Peak Thermal Energy Capacity |
| Savings | Whole Life Carbon & Electricity Costs |
| Max Dia / Depth | 1800mm/ 70m |
| Min Dia / Depth | 750mm/ 10m |

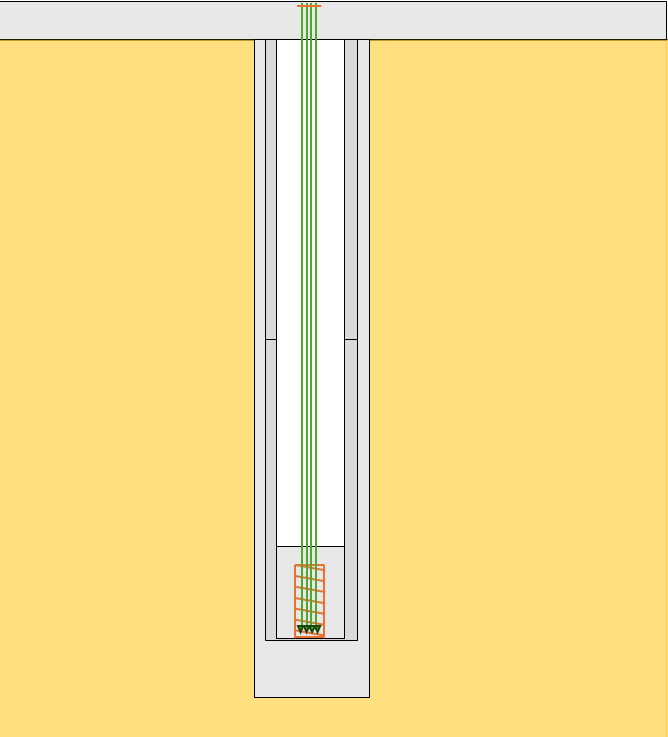

Hipertension
A system for piles subject to tension or heave loading, redefining the performance and ultimate working capacity of traditional tension piles, reducing cost and carbon.
| Application | Tension Piles & Heave Piles |
| Key Benefits | Reduces Reinforcement Qty |
| Savings | Embodied Carbon to ~20% |
| Max Dia / Depth | 1500mm/ 70m |
| Min Dia / Depth | 750mm/ 10m |
Hiperactive
A below-ground thermal energy or water storage system that uses and redistributes green energy during surplus or low-demand periods, reducing operational cost and carbon.
| Application | Piled Retaining Walls |
| Key Benefits | Reduces Wall Deflections |
| Savings | Embodied Carbon to ~25% |
| Max Dia / Depth | 1500mm/ 40m |
| Min Dia / Depth | 900mm/ 10m |
Hiperextension
Repurposes or physically extends existing Hiper systems to increase structural and geotechnical capacity, enhance asset value, and extend product working life and warranty.

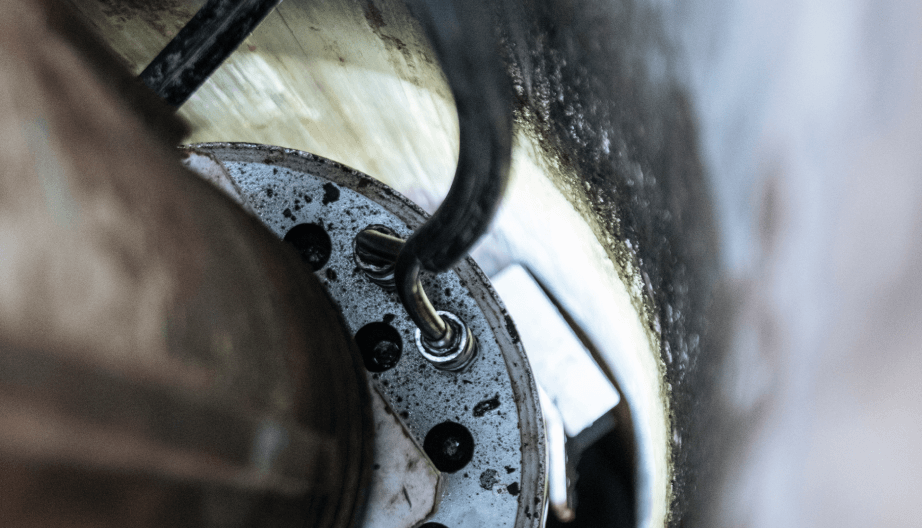

Impression Pile
Fully developed and tested, the Impression pile technology delivers a 25% increase in working load for traditional bored piles.
It may be adopted within the full suite of Hiper pile innovations or separately with traditional, solid bored piles.
H
I
P
E
R

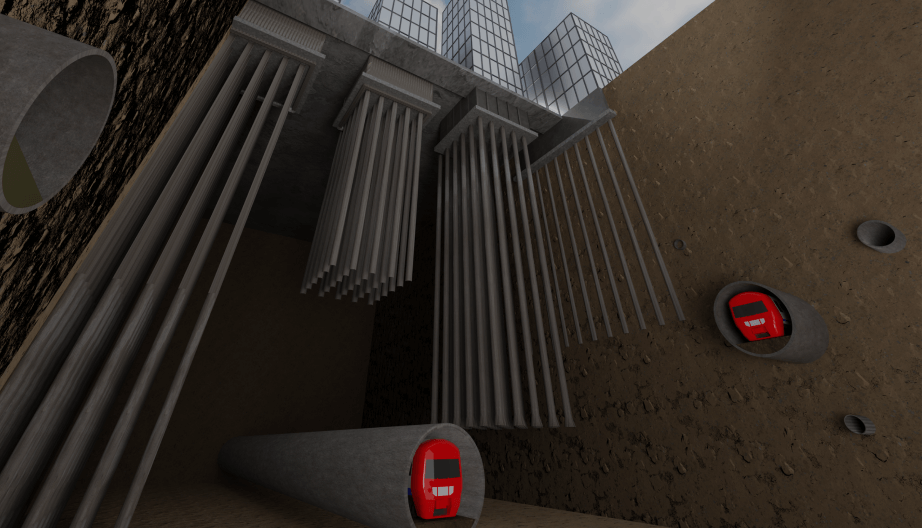

The pile void provides a shaft through which visual inspections can be made to confirm structural and material integrity, to allow insurers to re-warrant the reuse of existing our Hiperpile foundations.
Bespoke tooling is utilised to core through the pile base to enhance the future load bearing capacity.
H
I
P
E
R

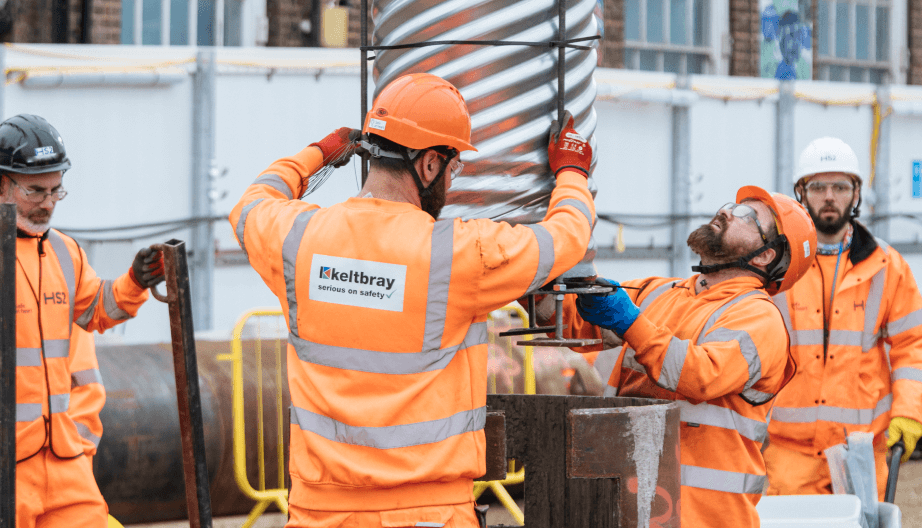

Introducing a void provides significant material and carbon savings, achieved by optimising and enhancing the structural efficiency of the remaining concrete section
Available for bored pile diameters from 750mm to 2.4m
H
I
P
E
R

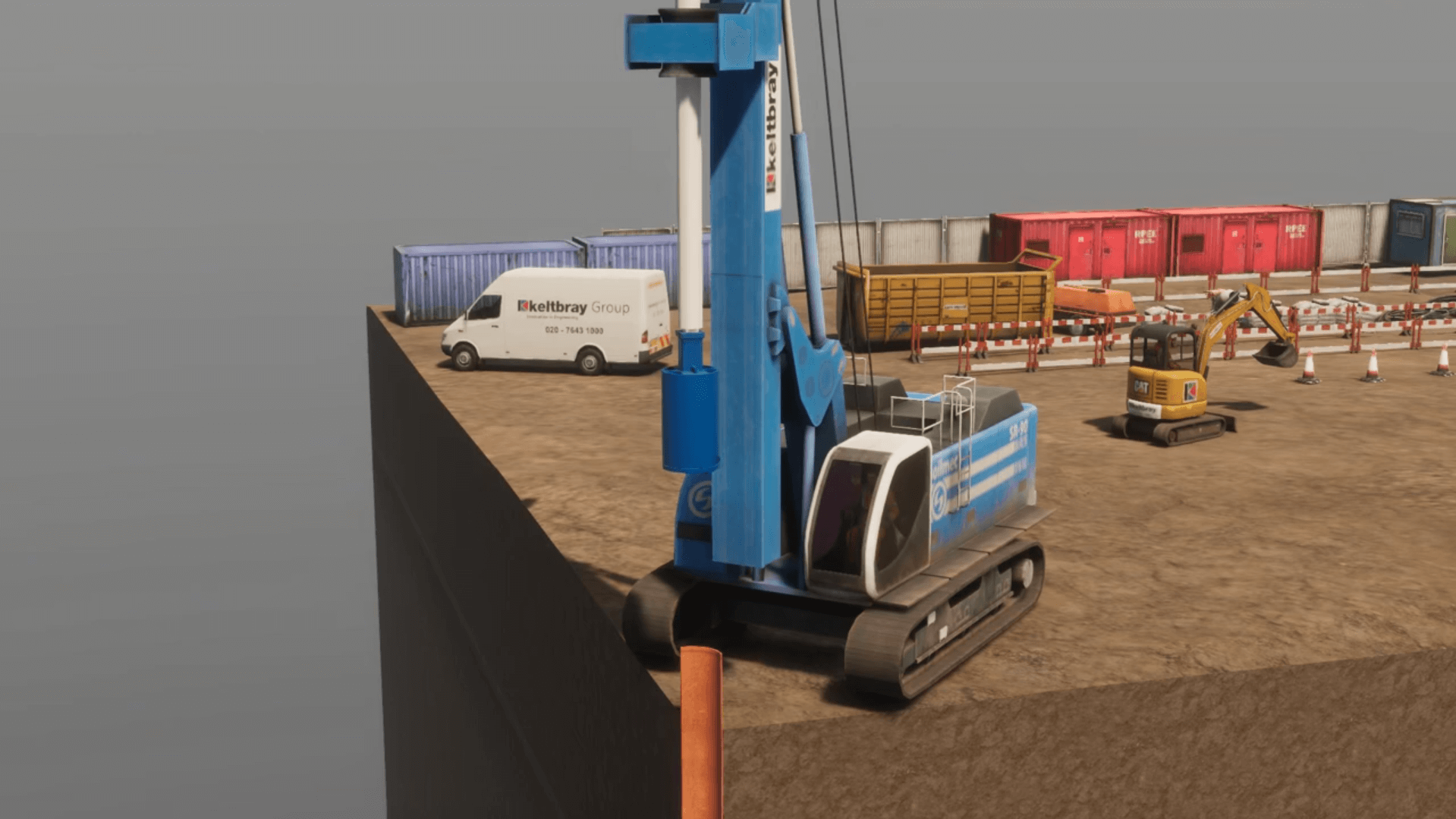

Our bespoke patented equipment significantly enhances the piled shaft friction allowing for continual optimisation of the pile design; providing savings on materials, carbon and pile arisings
Available for bored pile diameters from 600mm to 1200mm
H
I
P
E
R

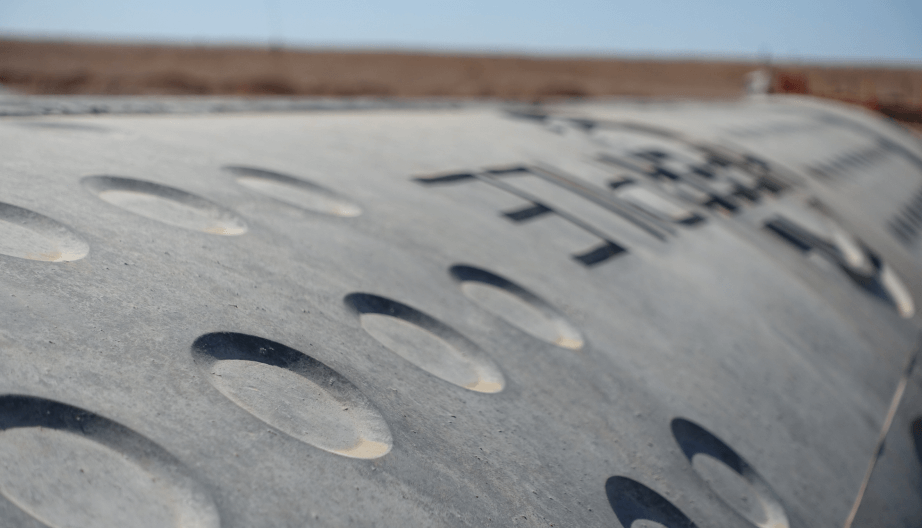

Hollow pile elements manufactured in controlled factory conditions that allows the benefits of Hiperpile to be achieved on very deep, large diameter, heavily loaded piles
Available for bored pile diameters of up to 2400mm
H
I
P
E
R

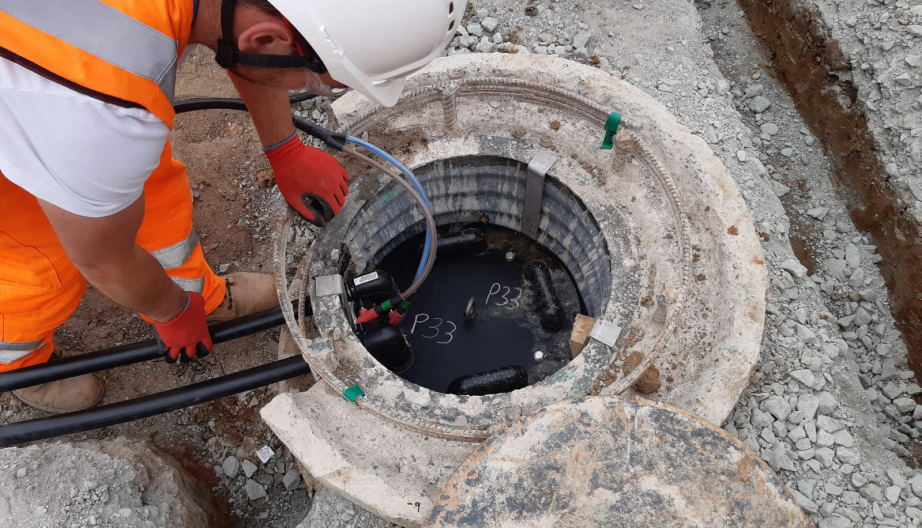

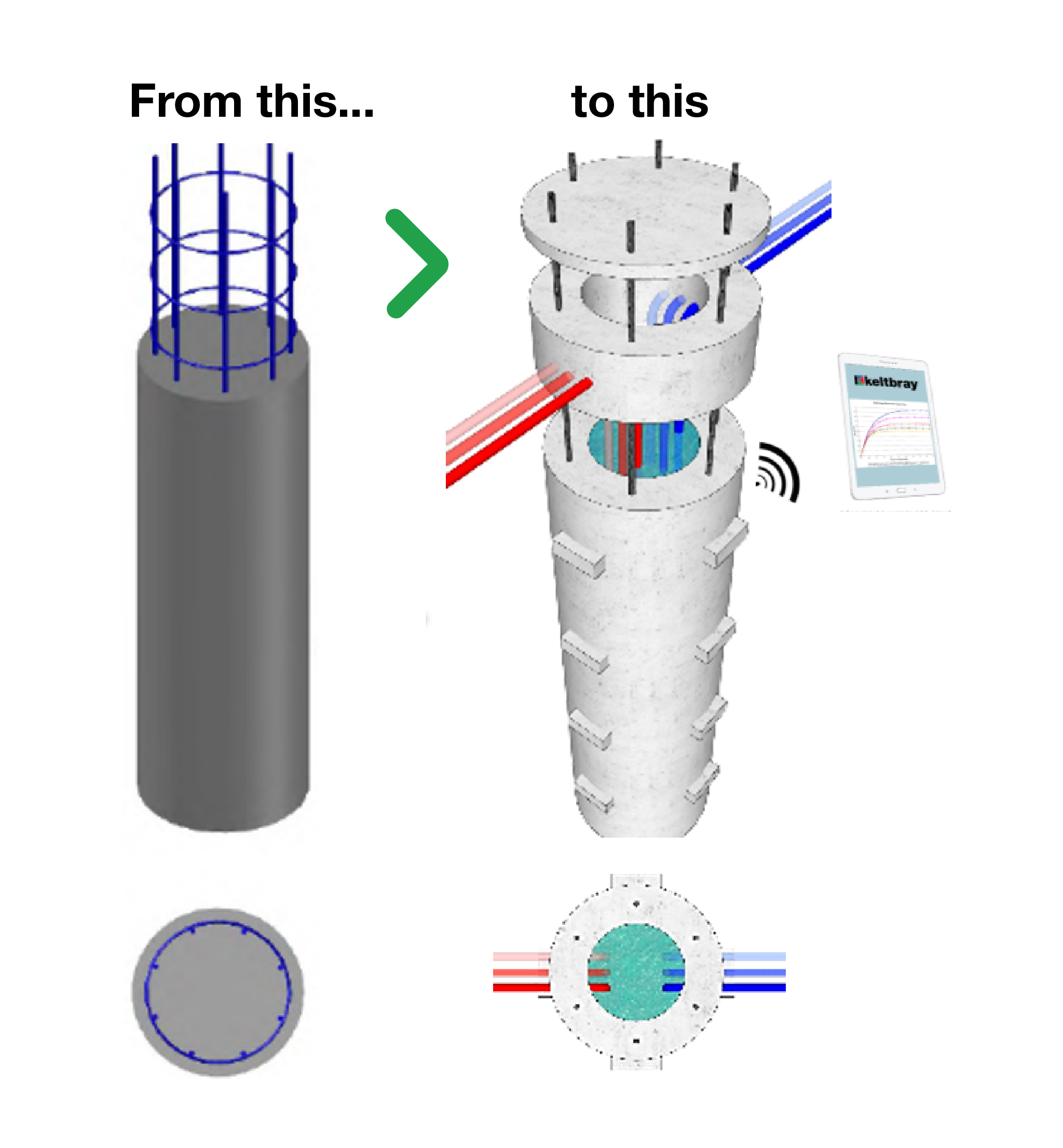

Thermal fluid and standard heat pipe loops are installed within the void following piling. The thermal energy generated delivers efficient building heating & cooling systems for both peak and base load demands.
Available for all bored hollow pile systems
H
I
P
E
R
The pile void provides a shaft through which visual inspections can be made to confirm structural and material integrity, to allow insurers to re-warrant the reuse of existing our Hiperpile foundations.
Bespoke tooling is utilised to core through the pile base to enhance the future load bearing capacity.
H
I
P
E
R
Introducing a void provides significant material and carbon savings, achieved by optimising and enhancing the structural efficiency of the remaining concrete section
Available for bored pile diameters from 750mm to 2.4m
